Products > Graphic LCD > > 208x80 Graphic Monochrome LCD Display

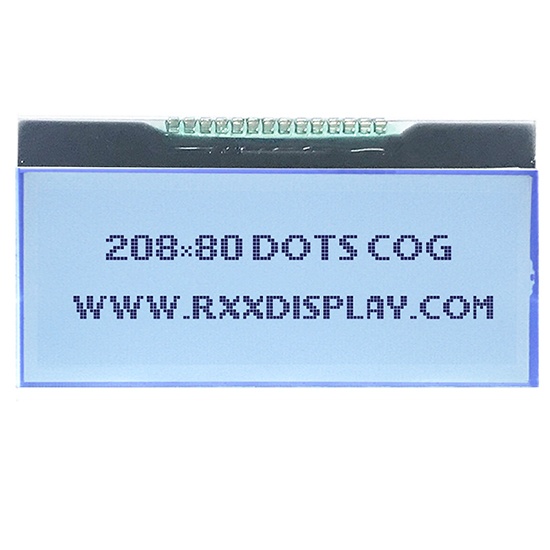

208x80 Graphic Monochrome LCD Display
208x80 Graphic Monochrome LCD Display 208x80 Graphic Monochrome LCD Display 208x80 Graphic Monochrome LCD Display 208x80 Graphic Monochrome LCD Display
Product name : 208x80 Graphic Monochrome LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Our ENH-DG208080-01-YFPHGP-Model monochrome graphic LCD module has a viewing area of 60 x 25 mm and is our standard 208 x 80 LCD displays.  This LCD is available with several different backlight colors and is widely used in industries such as home automation and test and measurement equipment. The COG IC is the ST75263.



Key Features

208x80 Graphic Monochrome LCD Display

Resolution

208 x 80

Outline Size

65 x 34 mm

Viewing Area

60 x 25 mm

Active Area

56.972 x 21.98 mm

Driver IC

ST75263

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/16 duty, 1/12 bias

Top

-10℃ To + 60℃

Tst

-20℃ To + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

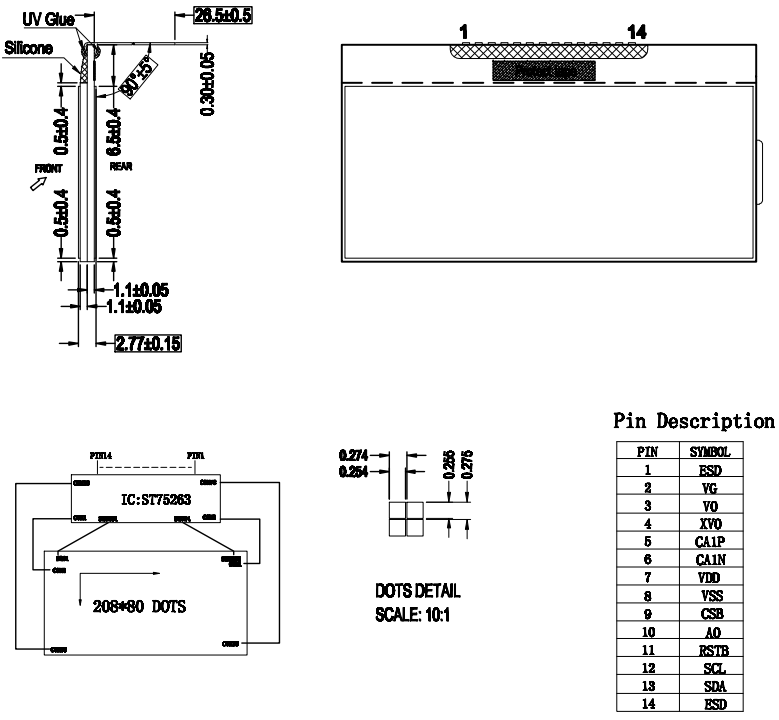

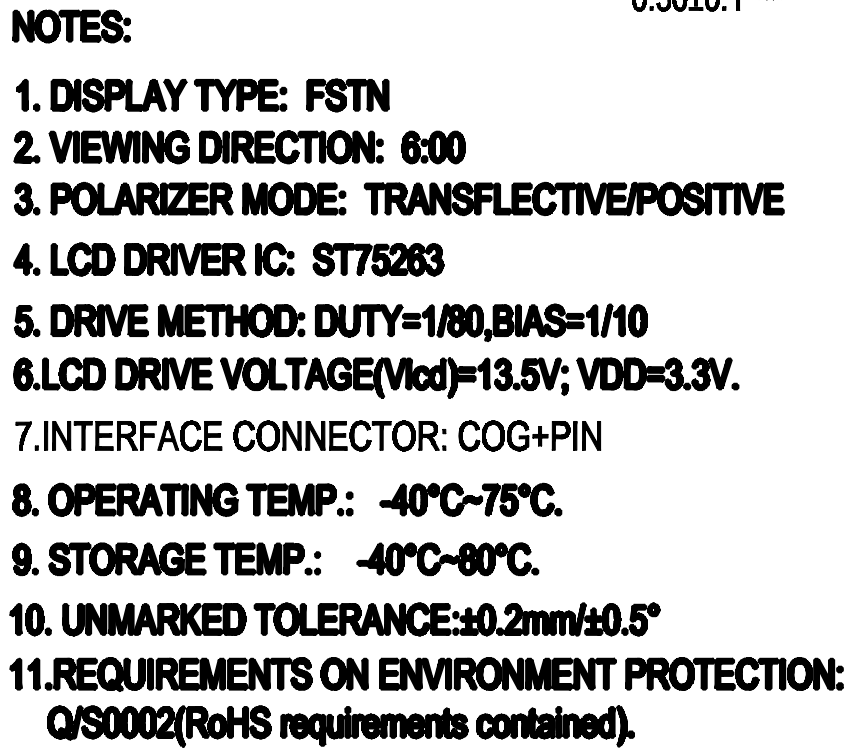

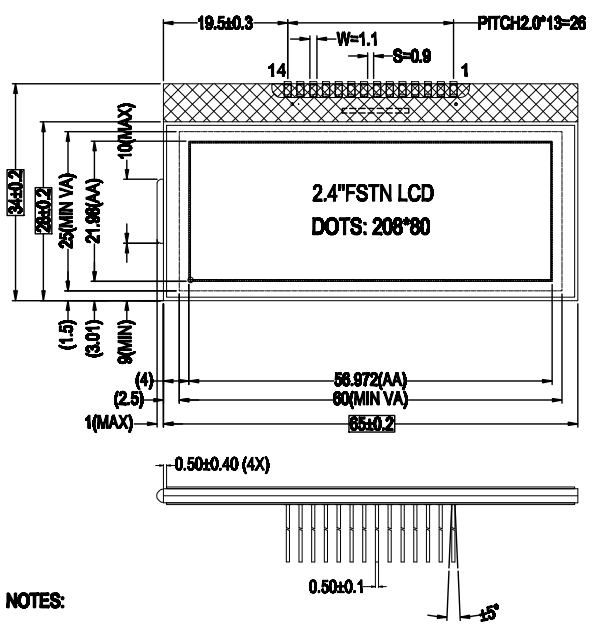

LCD Drawing

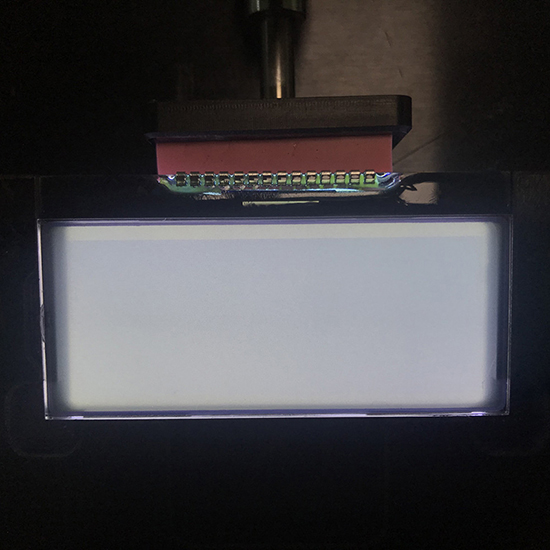

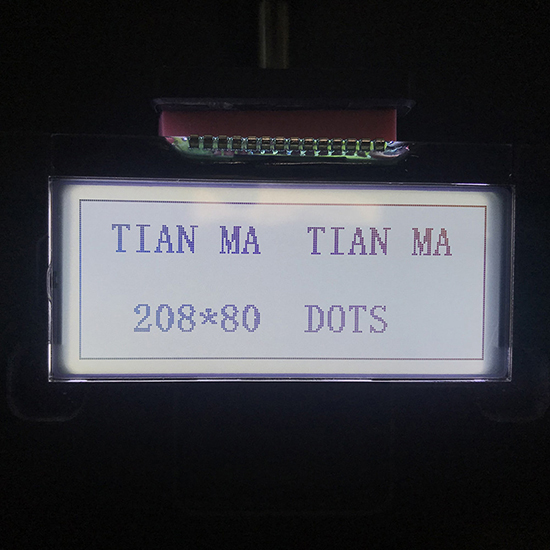

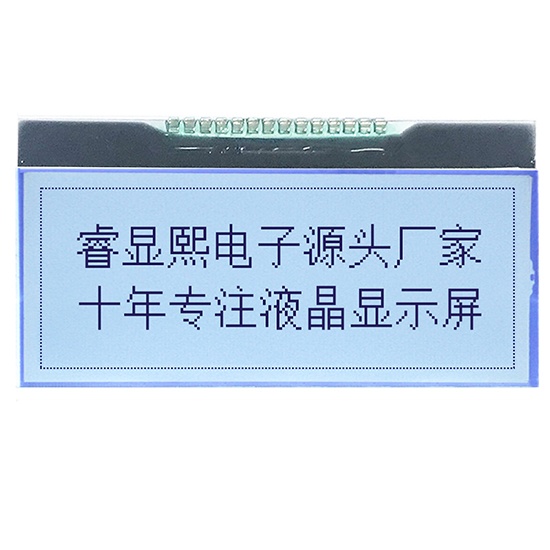

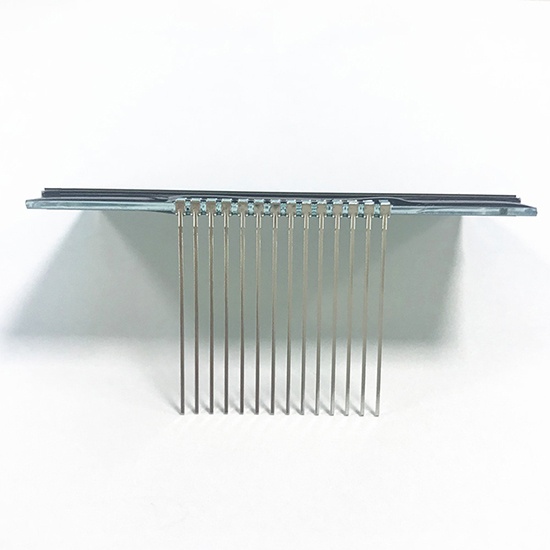

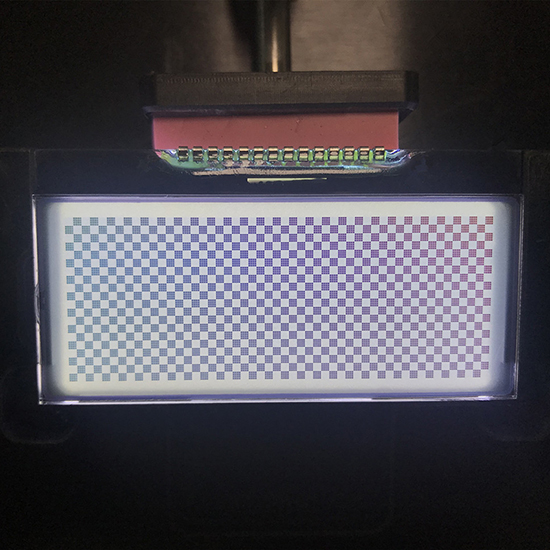

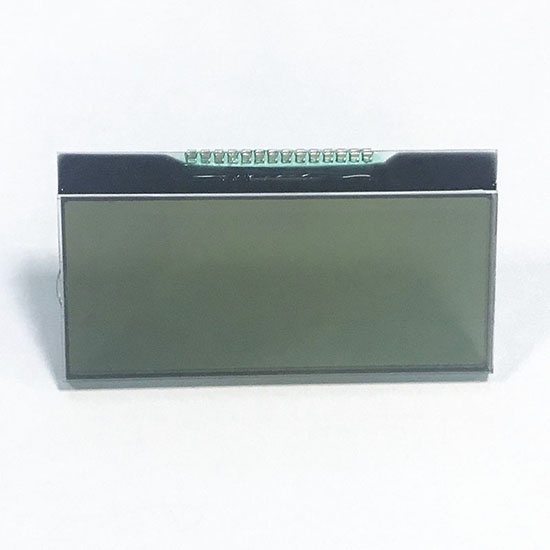

Image Details


Advantages

1. OEM is accepted.

2. Custom Various LCD display module Available.

3. Custom LED Backlight Color Available.

4. Variuos Temperature Range Available.

5. Any question or problem will be replied in 12 hours.

6. 24-hour hotline Available.
