Products > Segment LCD > > Custom Size LCD Screen 7 Segment LCD Display Module

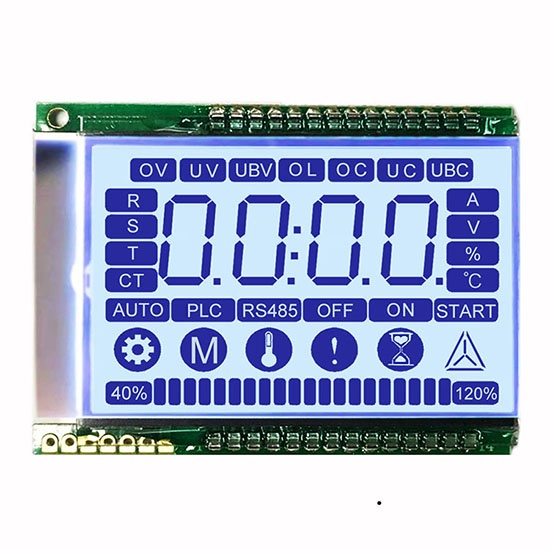

Custom Size LCD Screen 7 Segment LCD Display Module
Custom Size LCD Screen 7 Segment LCD Display Module Custom Size LCD Screen 7 Segment LCD Display Module Custom Size LCD Screen 7 Segment LCD Display Module Custom Size LCD Screen 7 Segment LCD Display Module
Product name : Custom Size LCD Screen 7 Segment LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description

Our custom LCD module display are available in different options according to customer requirements. This ENH-SS912006-01-YHNTKN is a segment LCD for super ammeter. Enrich can offer various options on backlight type, pin and connector, cable, touch panel, heater or even customized PCB which can be as semi-custom solution for your product application. Welcome your inquiry.



Custom LCD Module Procedure

1. Send your LCD drawing, samples or photos to us, any other requirements will be appreciated.

2. Share your ideas with us, we will send you the solution and estimate quotation.

3. Negotiate the technical problems, then share with you the accuracy quotation for finally confirm.

4. We will making the LCD drawing, and confirm by your side.

5. After your tooling payment confirmed, we will make the samples for your reference.

6. After samples confirmed, then we welcome your mass production.

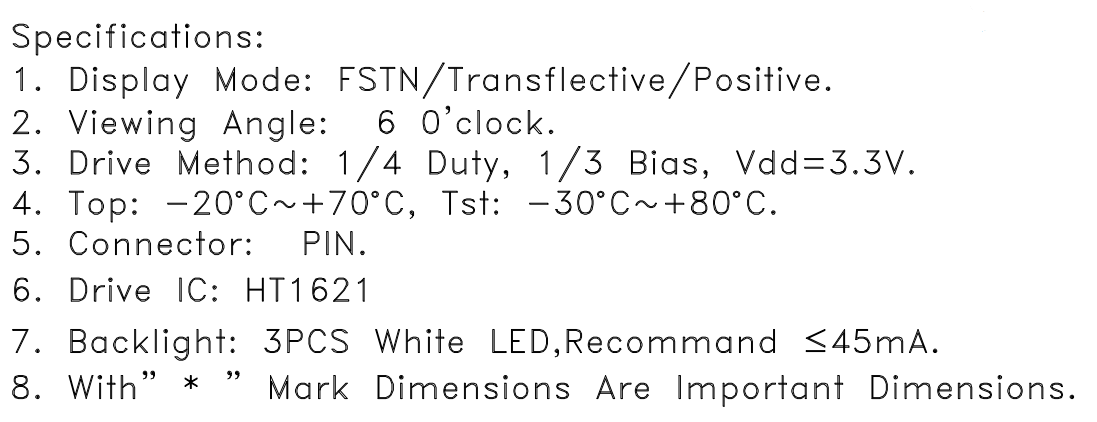

Details of LCD

Cusom Size LCD Screen 7 Segment LCD D

PCB Outline Size

50*40 mm

LCD Size

45*37 mm

Viewing Area

42*30 mm

Connector

PIN

Driver IC

HT1621

Backlight

3PCS White LED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/4 duty, 1/3 bias

Top

-20℃ TO + 70℃

Tst

-30℃ TO + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

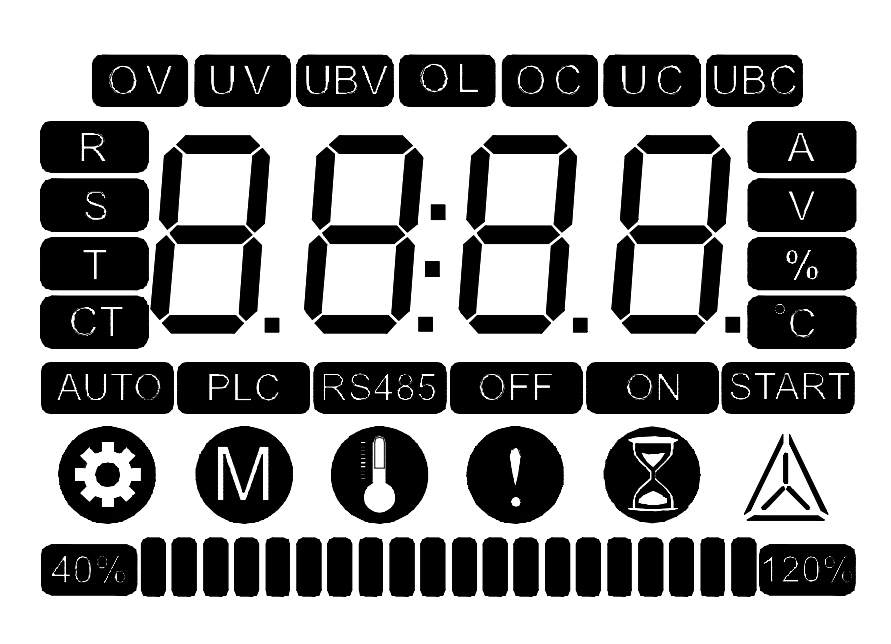

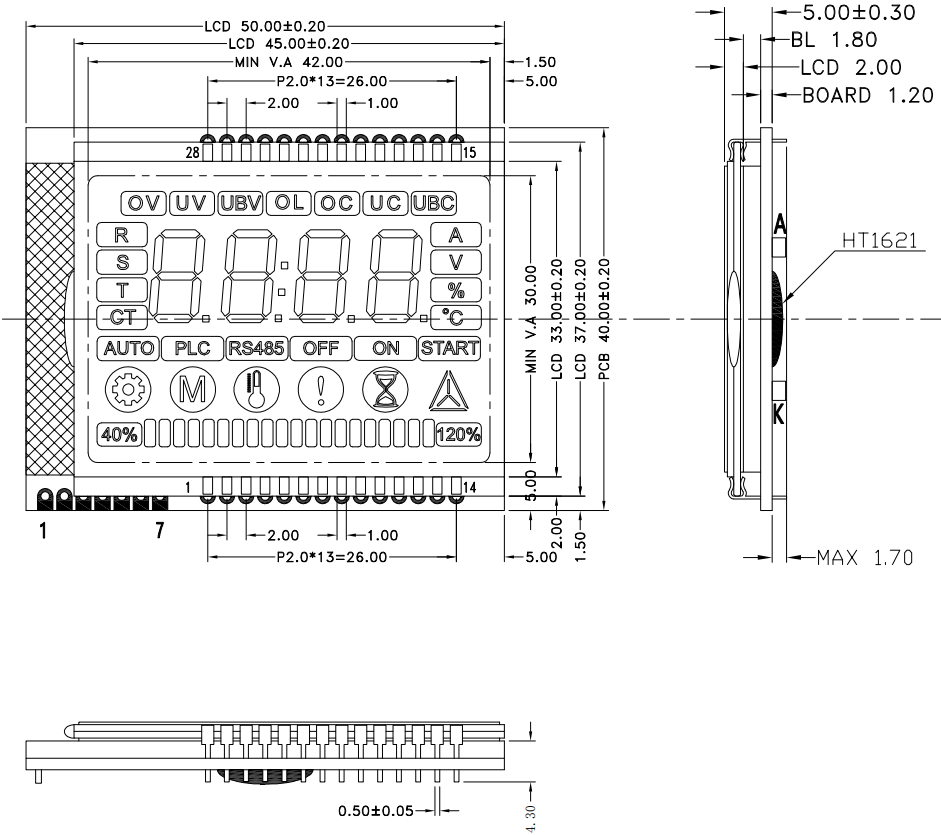

LCD Drawing

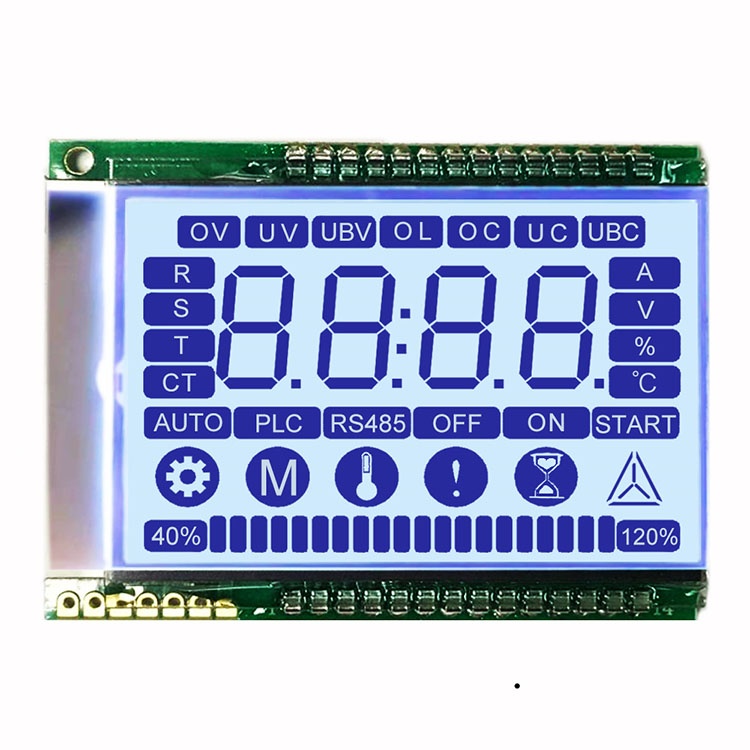

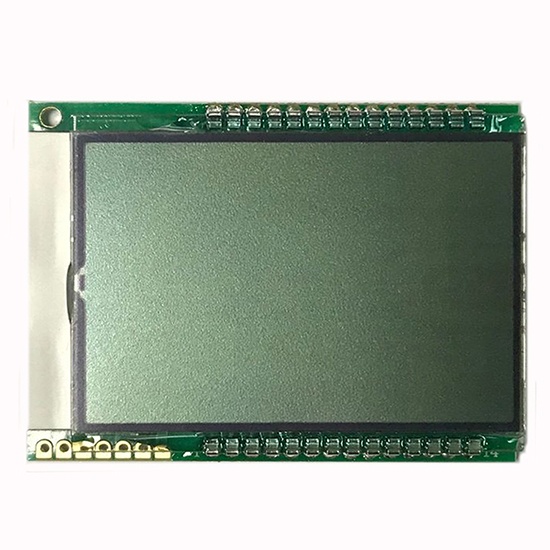

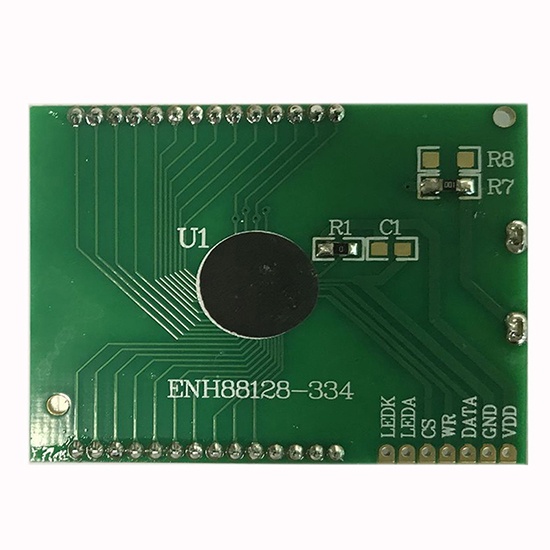

Image Details

Our Service

1. Small order would be accepted.

2. Mass production leadtime would be guaranteed.

3. Sample leadtime: 10 days;

4. Mass production leadtime: 30 days.

5. 100% product testing and inspection before shipment.

6. 100% free replacement for defective products.
