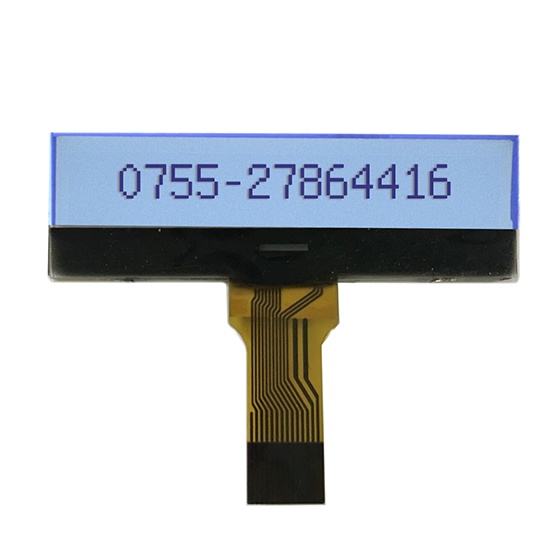

128x16 Graphic LCD Display Module
128x16 Graphic LCD Display Module 128x16 Graphic LCD Display Module 128x16 Graphic LCD Display Module 128x16 Graphic LCD Display Module
Product name : 128x16 Graphic LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description

Thin, very low-power 128x16 graphic LCD display screen is having the outline size of 48x14.52 mm, view area dimension 44.9x6.82 mm and active area 43.5x5.42 mm, which is with 2 pieces white LED backlight. Ideal for handheld and/or battery operated devices, popular 6 o'clock viewing direction. We can offer a variety of pin out connections to suit your requirements.



Features

-Display Type: 128x16 resolution

-LCD Type: FSTN, POSITIVE, TRANSMISSIVE

-Driver Condition: LCD Module : 1/33Duty , 1/6Bias

-Viewing Direction: 6 O’clock

-Backlight Type: SIDE WHITE

-Driver IC: ST7567



Mechanical Specifications

-Outline Dimension: 48x14.52 mm

-Viewing Area: 44.9x6.82 mm

-Active Area: 43.5x5.42 mm

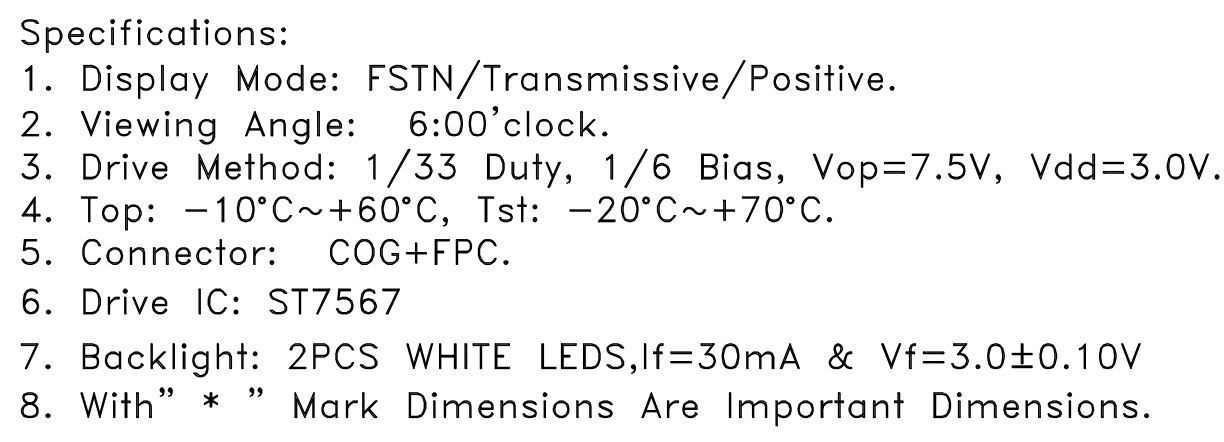

LCD Drawing

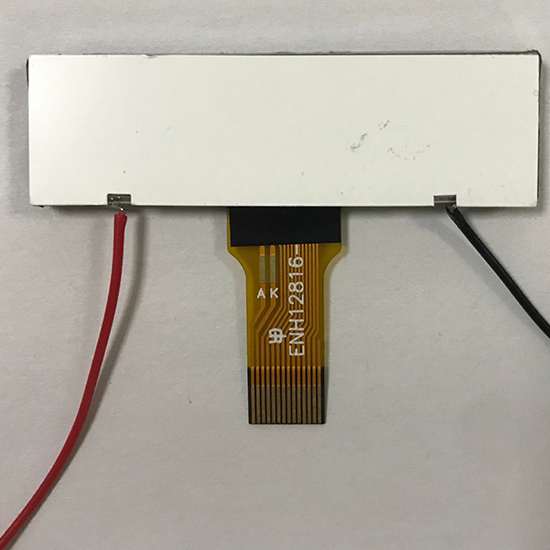

Image Details

FAQ

--What should I do if I receive a wrong part?

First, please make sure the part you purchase is the one what you need. If you do receive the damaged part because of the mistake on our side, please contact with us, we will assist you to replace the correct one for you.



--How long can I get reply after sending inquiry?

We will reply to you within 24 hours.



-More details kindly contact us, welcome your inquiry.
