Products > COG > > COG LCD Module 128064

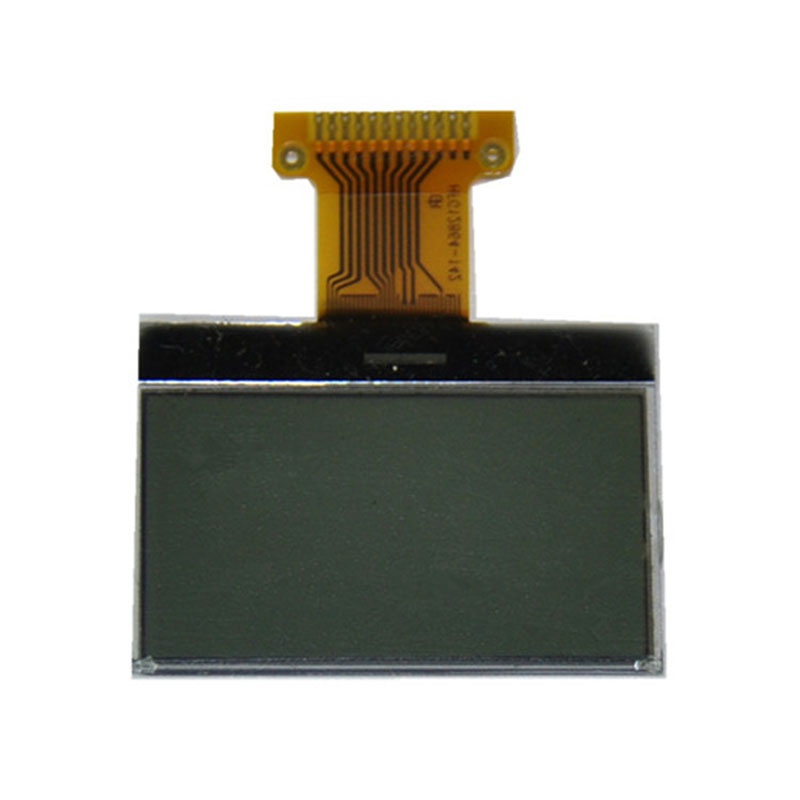

COG LCD Module 128064
COG LCD Module 128064 COG LCD Module 128064 COG LCD Module 128064
Product name : COG LCD Module 128064
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description


ENH-DG128064-66
 is 1.15"cog 128x64 dot matrix LCD graphic LCD display module, ST7567 controller, parallel interface, white on black, wide temperature, 3V.

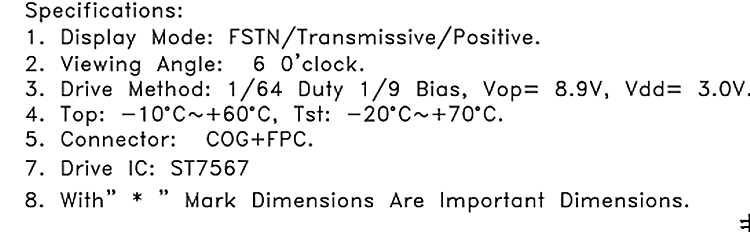

Specification

COG LCD Module 128064

Resolution

128*64

Outline Size

31*22.5 mm

Viewing Area

29*16.36 mm

Active Area

25.58*14.06 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

WLED

Display Mode

FSTN, Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

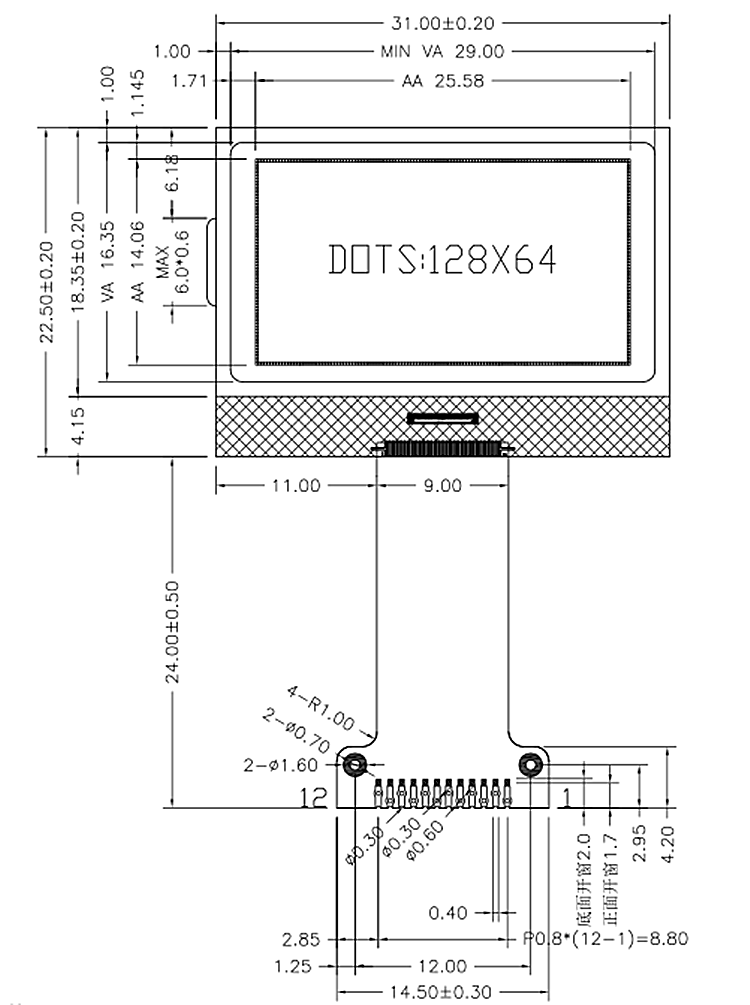

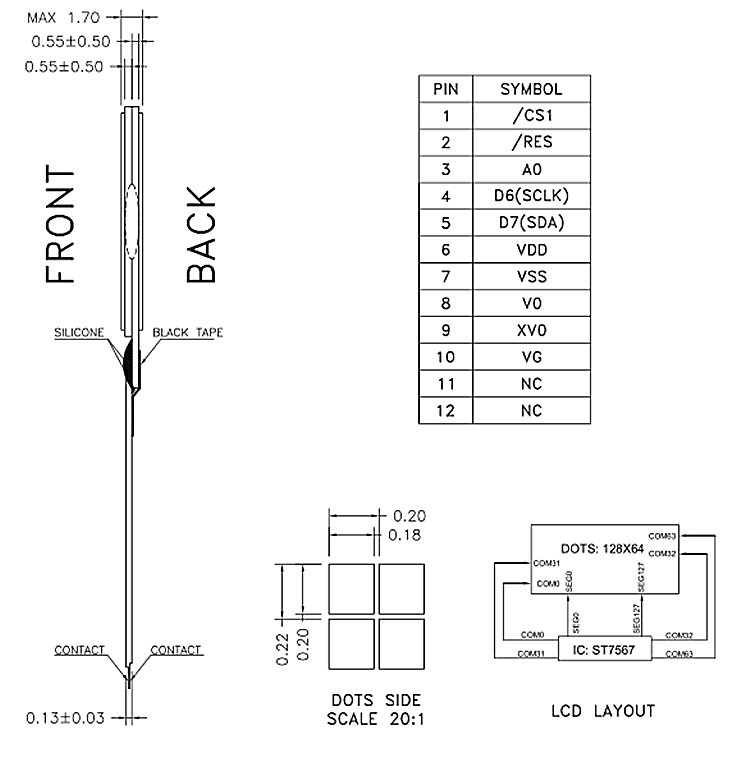

LCD Drawing
