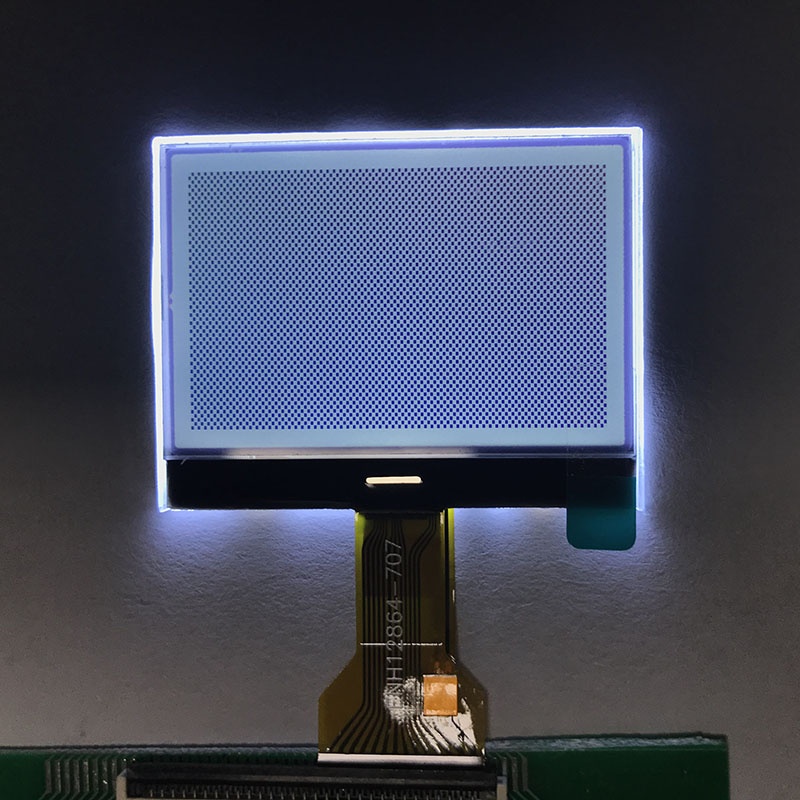

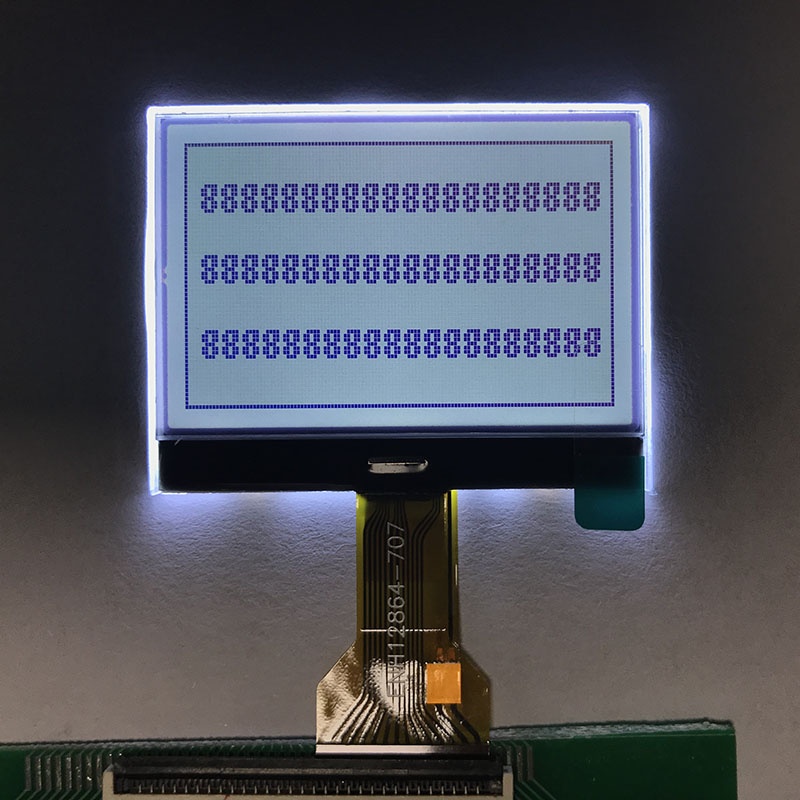

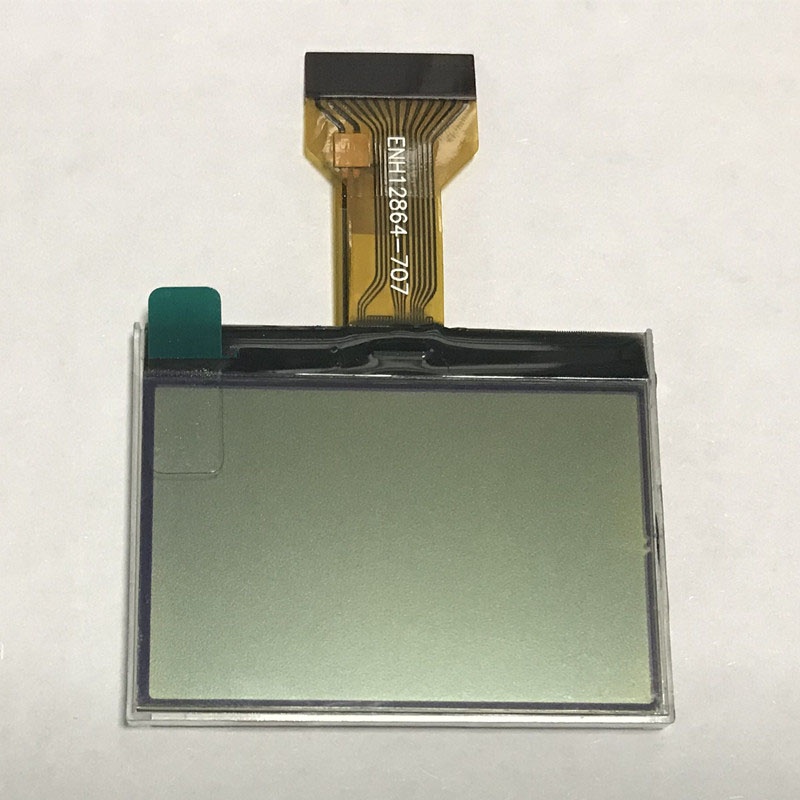

128x64 Graphic LCD Display Module
128x64 Graphic LCD Display Module 128x64 Graphic LCD Display Module 128x64 Graphic LCD Display Module 128x64 Graphic LCD Display Module
Product name : 128x64 Graphic LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description

128x64 graphic LCD module, built-in UC1701x. This small LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Features

-Display Type: 128x64 DOTS

-LCD Type: FSTN, POSITIVE, TRANSFLECTIVE

-Driver Condition: 1/64 Duty, 1/9 Bias

-Viewing Direction: 6 O’clock

-Backlight Type: WLED

-Driver IC: UC1701x



Mechanical Specifications

-Backlight Size: 43.5 *33.8 mm

-LCD Size: 42.3*33.0 mm

-Viewing Area: 39.8*25.5 mm

-Active Area: 37.09*23.01 mm

-Dot Size (W*H): 0.44*0.44mm

-Dot Pitch (W*H): 0.48*0.48mm

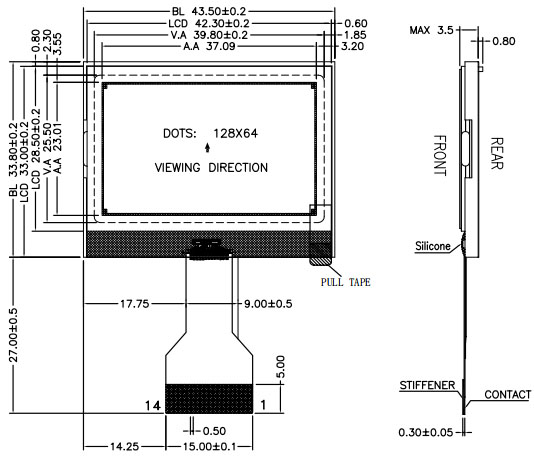

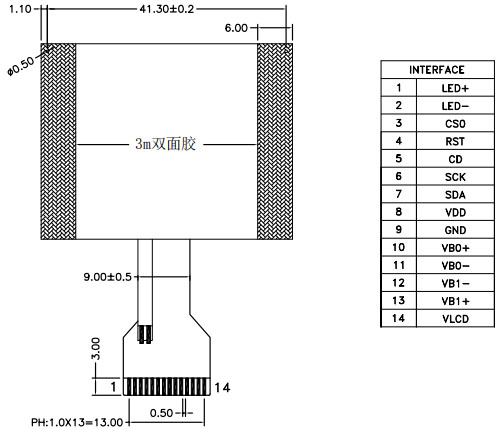

LCD Drawing

FAQ

A. When will my order be shipped after the payment confirm?

We will dispatch the items within 1-3 working days after payment confirmed.



B. Is there any tracking information after the samples shipping?

We will update you the tracking number.



C. What should I do if the samples I receive is damage?

Before shipping, we will check and test the LCD one by one strictly to make sure it is OK, so it is extremely are to receive a damage sample. If you receive a damage part, please let us know, and we will send the new one to you within 2-5 working days.
