Products > Graphic LCD > > 160x48 LCD Display
160x48 LCD Display
160x48 LCD Display 160x48 LCD Display 160x48 LCD Display 160x48 LCD Display
Product name : 160x48 LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



We designed this 160 x 48 graphic LCD display module so it fits on the face of 2.2-inch wide devicessuch as blade servers, disk drive carriers, and expansion cards.

This display uses two long-life white LEDs for its backlight. The forward voltage is 10v. For long life, we recommend driving the backlight at 12mA. The best way to drive the backlight is to use a constant current supply. Typically a switching supply designed to control current works well.

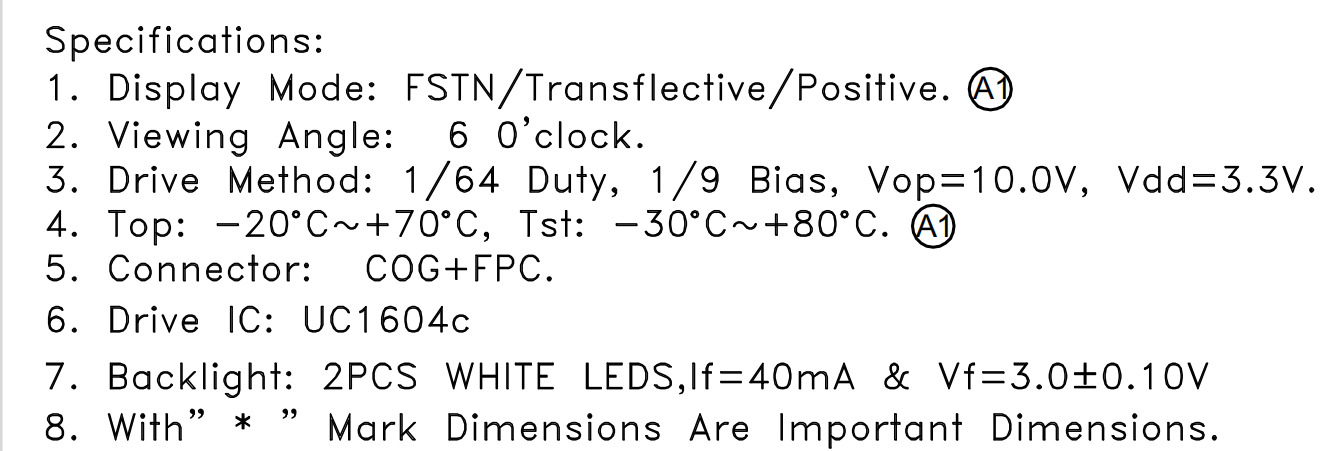

LCD Features

160x48 LCD Display

Resolution

160x48

Outline Size

62.7*20.8 mm

Viewing Area

52.7*17 mm

Active Area

50.48*14 mm

Connector

COG+FPC

Driver IC

UC1604C

Backlight

2PCS white LEDS

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

VOP

10V

VDD

3.3V

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.



Product Application

-Medical Equipment (Ultrasound Machine, Blood Pressure Meter, etc)

-Office Automation (Printer, Scanner, etc)

-Home Appliances (Air-condition Display, Audio Broadcast, etc)

-Other application: Medical Electronics, Instrumentation, Smart Wearable Device, POS Machine, U Shield, ETC Electronic Tag, etc.

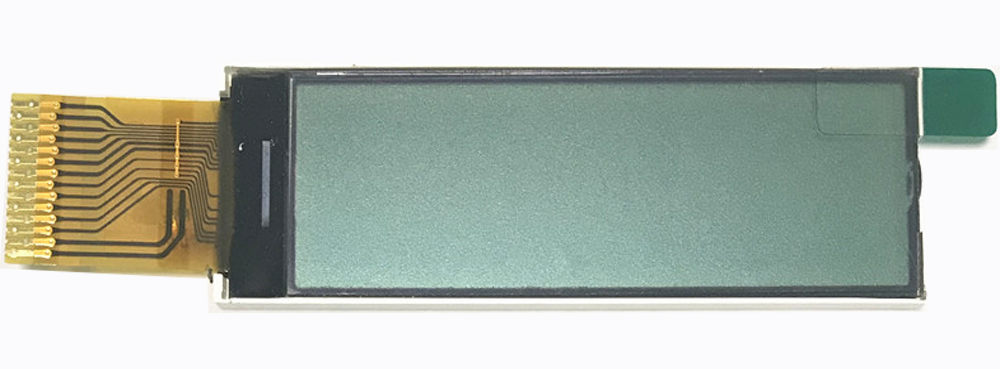

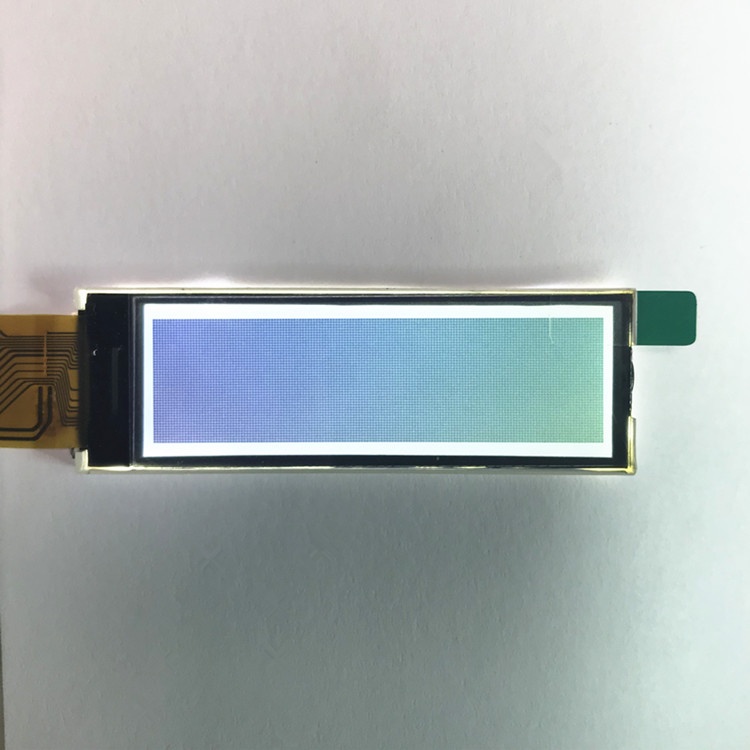

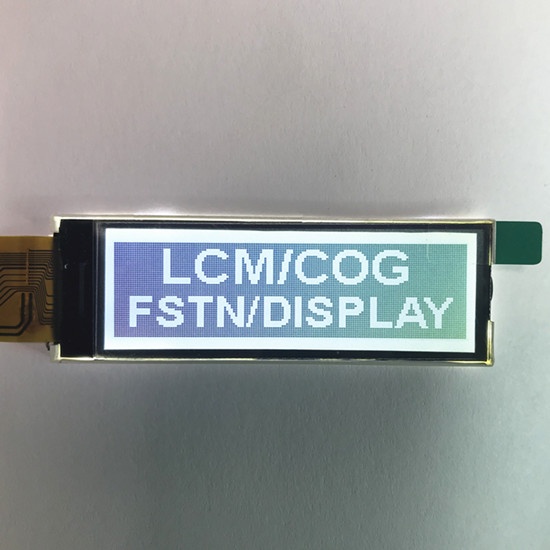

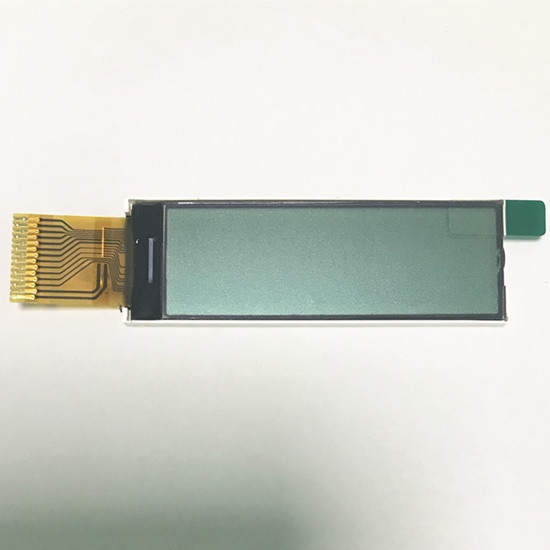

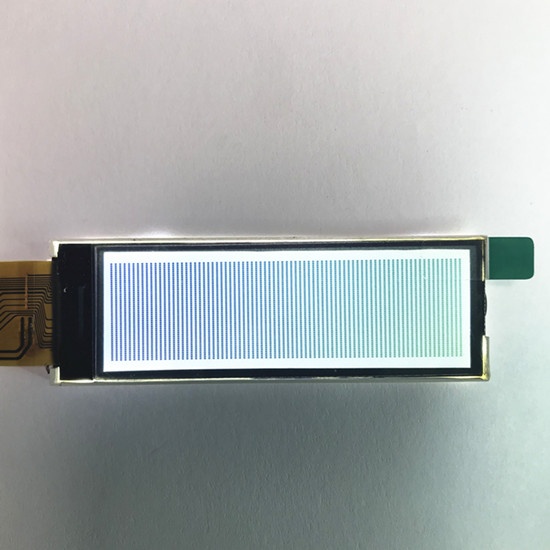

Detail Image

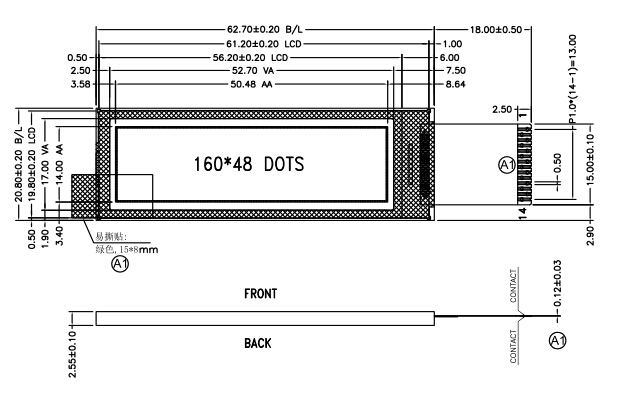

LCD Drawing

FAQ

1.Can you guarantee long-term supply?

Yes, more than 6 years of strong factory guarantee long-term supply.

2.Can you provide technical help?

Yes, we can provide technical support on that LCD you purchase.

3.Our MOQ?

Dear, we accept your order as 1 piece.

4.Are you manufacturer or trading company?

We are professional manufacturer in LCD display more than 6 years.

5.How can I pay for the order?

Our payment terms: T/T, Paypal, Bank Transfer, etc.
