Products > Graphic LCD > > 128x64 LCD Display
128x64 LCD Display
128x64 LCD Display 128x64 LCD Display
Product name : 128x64 LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description

We designed this 128x64 graphic LCD display module so it fits on the face of 2-inch wide devicessuch as blade servers, disk drive carriers, and expansion cards.

The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance.

This economical COG (Chip-On-Glass) STN transmassive display is suitable for use in indoor.

This graphic LCD display uses five long-life white LEDs for its backlight. The VOP is 8.2V, VDD is 3.0V. For long life, we recommend driving the backlight at 15mA.

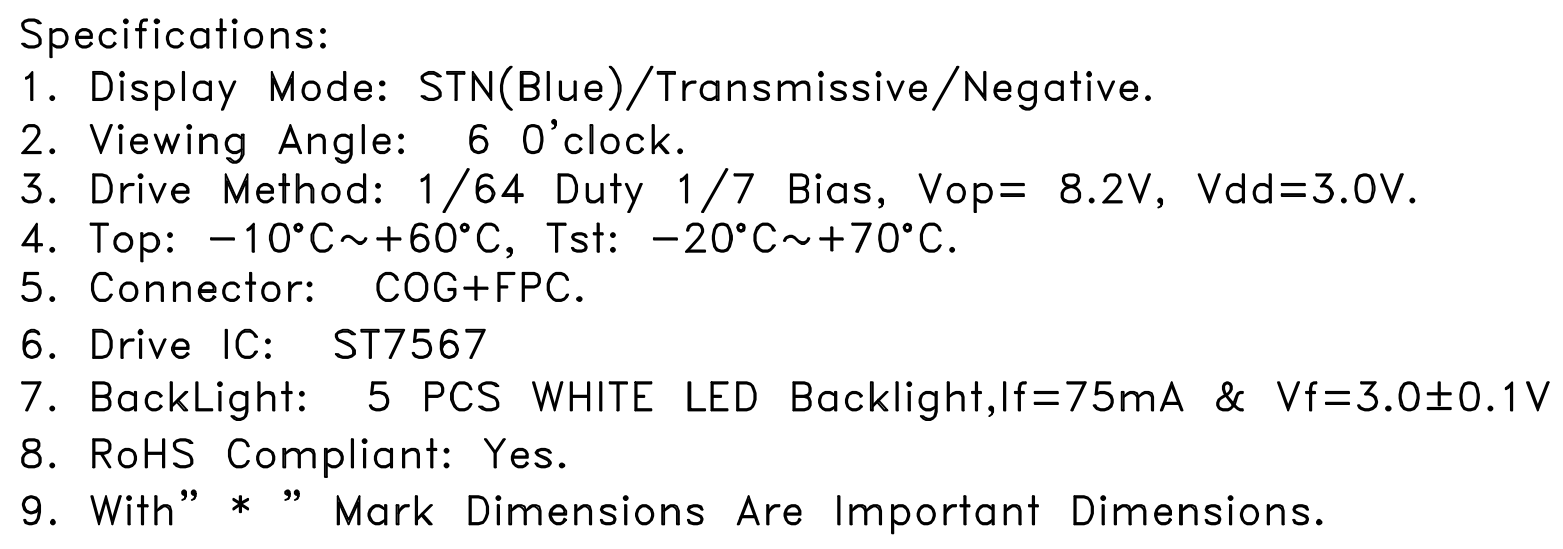

General Specification

128x64 LCD Display

Resolution

128*64

Outline Size

56.6*38.6mm

Viewing Area

53.6*28.6mm

Active Area

48.61*24.93mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

5 WLEDS

Display Mode

STN-blue/Transmissive/Negative

Viewing Angle

6:00

Drive Method

1/64 duty, 1/7 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

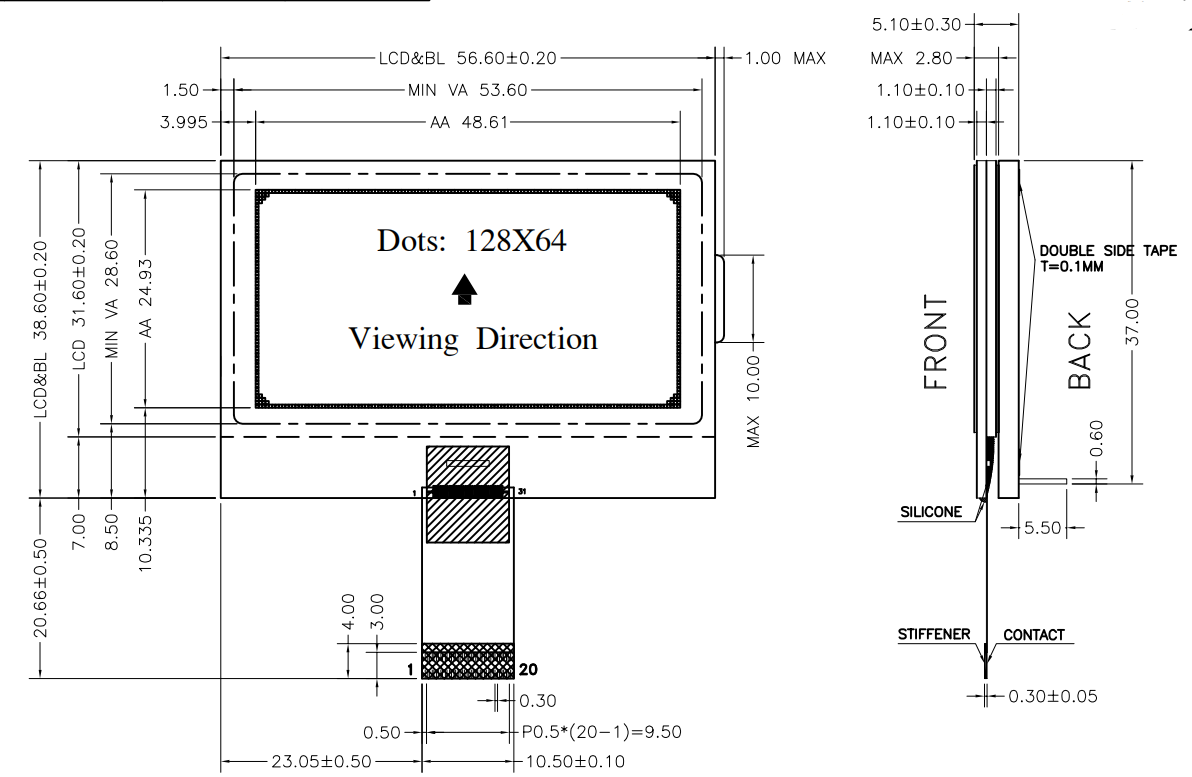

LCD drawing

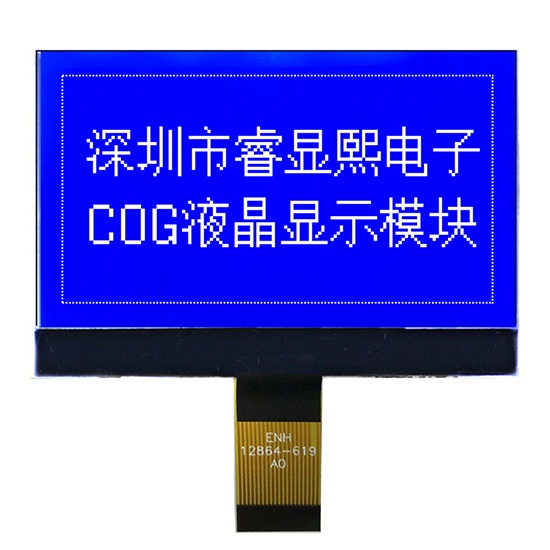

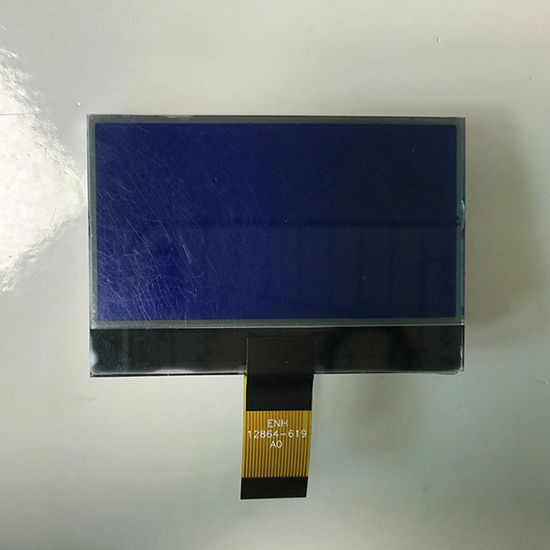

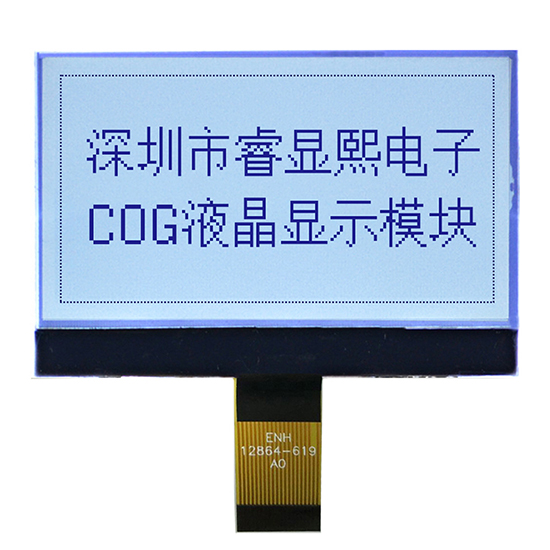

Image Details

FAQ

1.Why choose Enrich?

1) Enough industrial experience and involved main markets all over the world.

2) Precise and advanced equipment.



2.What can we do for you?

Please share with us your requirements.



3. What is the LCD application?

House hold device, smart wearable device, medical electronics, instrumentation, etc.
