Products > OLED > > 1.4” 128*128 Color TFT LCD Display
1.4” 128*128 Color TFT LCD Display
1.4” 128*128 Color TFT LCD Display 1.4” 128*128 Color TFT LCD Display
Product name : 1.4” 128*128 Color TFT LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



This 1.4" diagonal TFT display has an integrated controller, and can take images formatted as 128(RGB)*128 pixel, 128x128 full color graphic TFT module.



Built-in ST7735S or compatible controller.

Operating temperature range is from -20°C to +70°C.



OLED Details

1.4” 128*128 Color TFT LCD Display

Size

1.4”

Driver IC

ST7735S

Resolution

128(RGB)*128

Panel Size

29*34.41 (mm)

Active Area

25.5*26.5 (mm)

Polarizer Mode

Transmissive

Display Color

Color

Operating Temperature

-20 to + 70

Storage Temperature

-30 to + 80

Module Weight

TBD

MOQ

1 Piece

RoHS

YES

Please contact me for questions regarding this product.

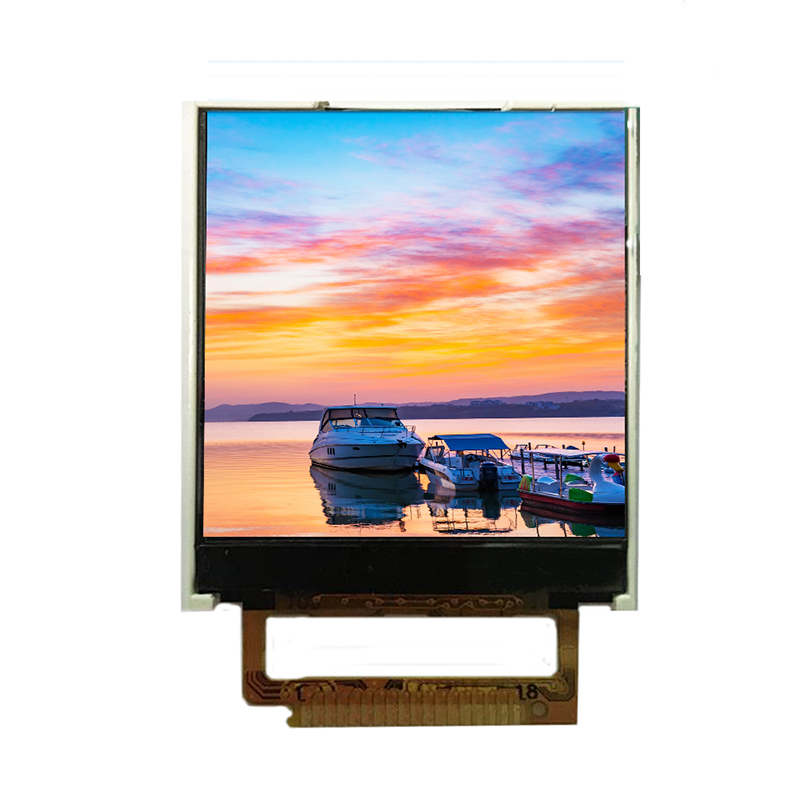

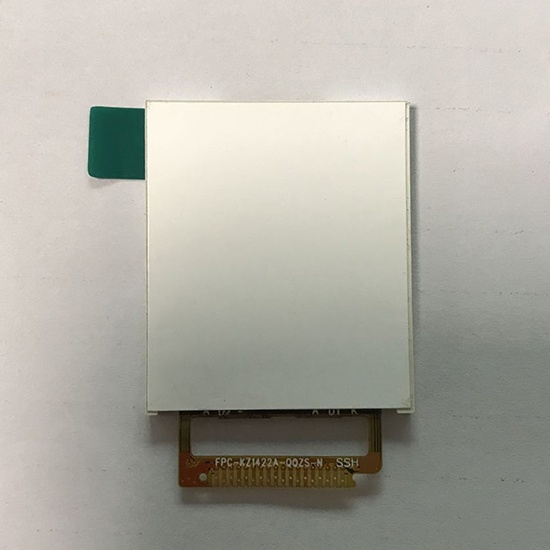

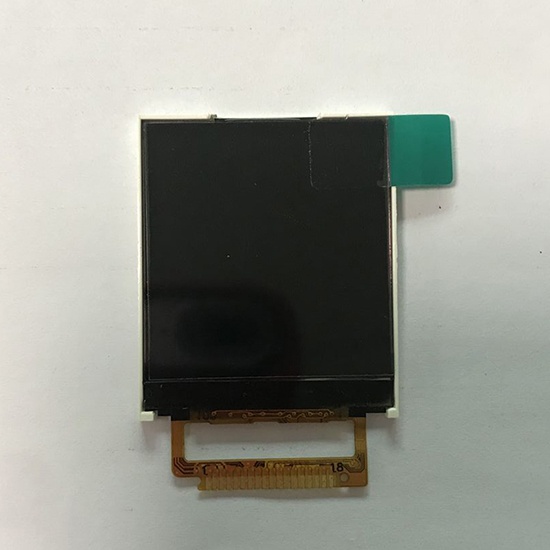

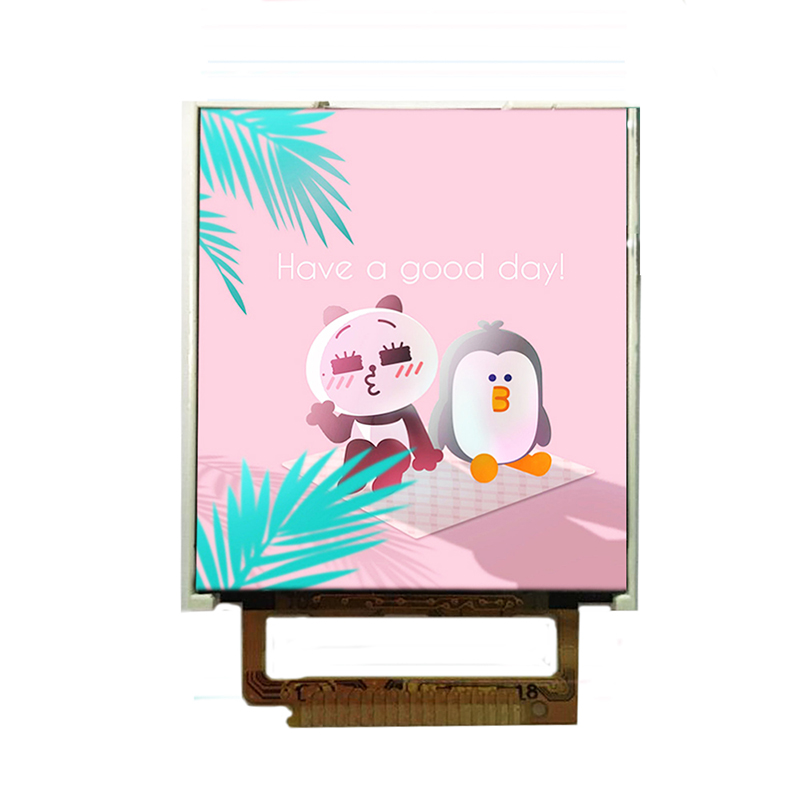

Image Details

OLED Applications

-Meter

-Ammeter

-Instrument tuner

-External hard disk

- Printers

-Wearable devices

-Medical & health equipment

-3D & Shutter

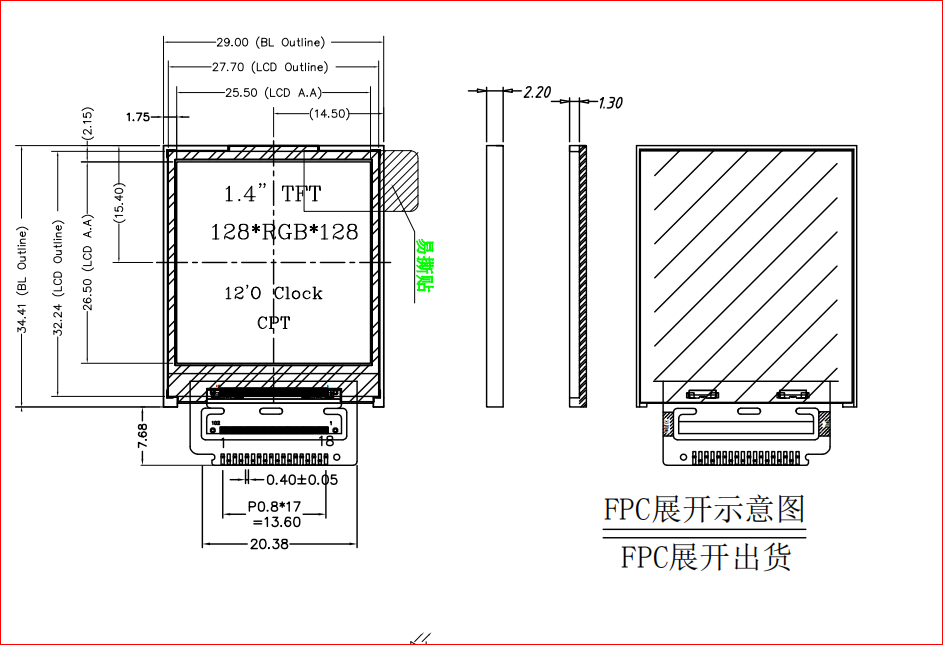

Physical Size





FAQ

+How to place an order ?

Please send us your purchase order by Email or through Whats APP directly, or ask us to send you one invoice.



+How can I get the data sheet ?

If you need the standard OLED, the datasheet will be sent to request after getting your inquiry.



+How long can I get the sample?

Samples will be ready for deliver in 5-7 days.
