Products > OLED > > Small Size 0.42 Inch OLED Display Module for Smart Products

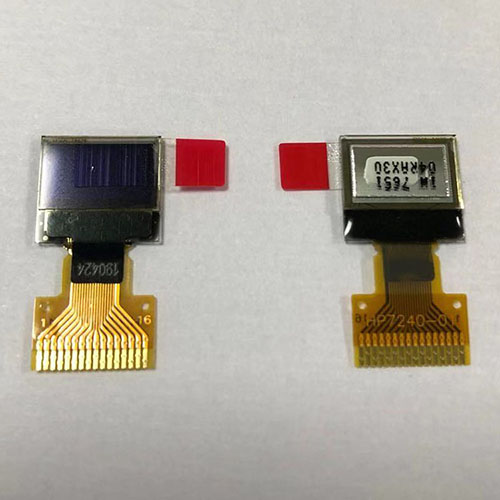

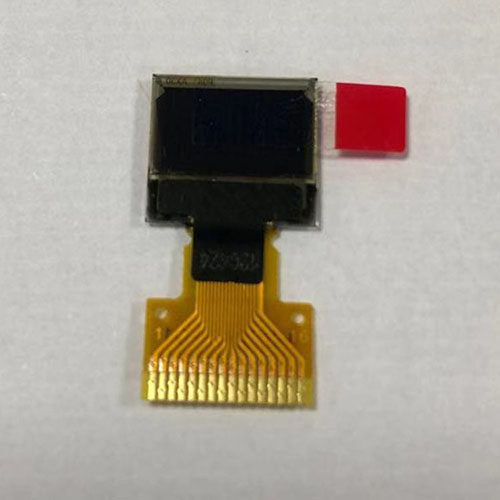

Small Size 0.42 Inch OLED Display Module for Smart Products
Small Size 0.42 Inch OLED Display Module for Smart Products Small Size 0.42 Inch OLED Display Module for Smart Products Small Size 0.42 Inch OLED Display Module for Smart Products
Product name : Small Size 0.42 Inch OLED Display Module for Smart Products
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



We've got thousands of OLED/LCD displays perfect for your design. Whether you need a TFT, LCD, OLED display module, we carry them all. We also provide free world-class product support and a full complement of accessories; including touch screens, cables, development boards,etc.



OLED (Organic Light Emitting Diode) displays provide darker darks, brighter colors, as well as higher contrast ratios and viewing angles. They're also a lot more energy efficient compared to standard LCD technology.

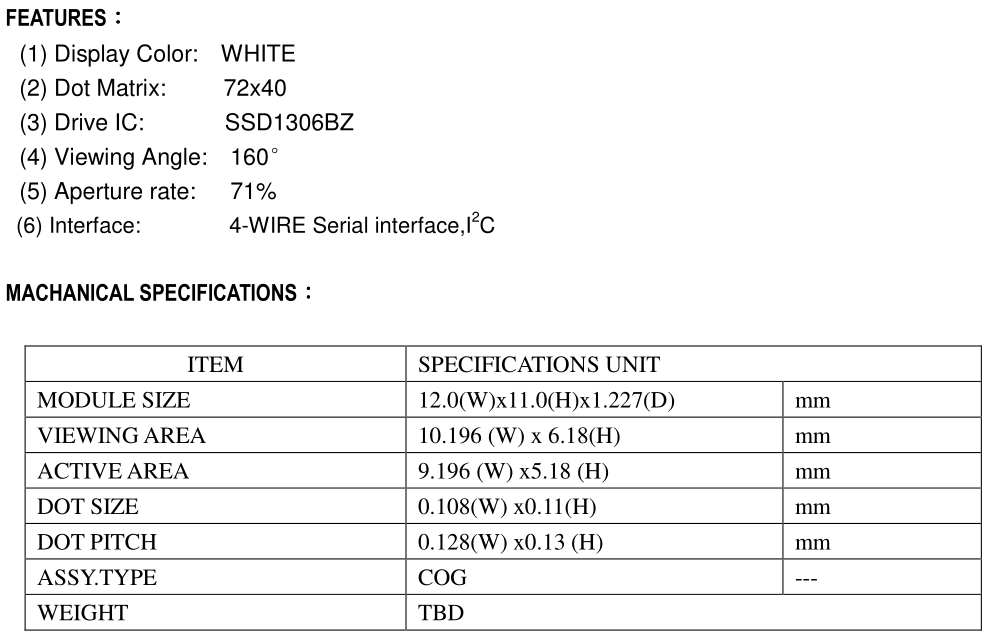

Key Features

Small Size 0.42 Inch OLED Display Module for Smart Products

Resolution

72x40

Outline Size

12.0(W)x11.0(H)x1.227(D) mm

Viewing Area

10.196 (W) x 6.18(H) mm

Active Area

9.196 (W) x5.18 (H) mm

Connector

COG+FPC

Driver IC

SSD1306BZ

Interface

4-WIRE Serial interface, I2C

Viewing Angle

160°

Aperture rate

71%

Top

-30℃ TO + 80℃

Tst

-40℃ To + 85

RoHS Compliant

Yes

Please contact us for datasheet and programming.

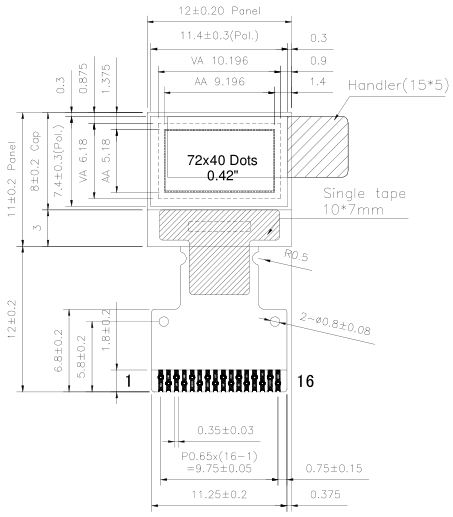

OLED Drawing


Image Details


LCD Display Product Range



1) TN, STN, FSTN LCD panels / modules

2) Customized LCD panels / modules

3) Small(0.96 inch-7 inch)TFT LCD



FAQ

1.Why choose Enrich?

1) Enough industrial experience and involved main markets all over the world.

2) Precise and advanced equipment.



2.What can we do for you?

Please share with us your requirements.



3. What is the LCD application?

House hold device, smart wearable device, medical electronics, instrumentation, etc.
