Products > OLED > > 60x32 0.5" Micro OLED Display Module
60x32 0.5
60x32 0.5 60x32 0.5 60x32 0.5 60x32 0.5
Product name : 60x32 0.5" Micro OLED Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



0.5 Inch 60x32 graphic white OLED displays, this module support I2C/SPI interface and has over 50,000 hour lifetime. The low power consumption is an advantage for handheld devices. This OLED module are perfectly small OLED displays that are excellent for fitness trackers or products requiring a small but high contrast display.

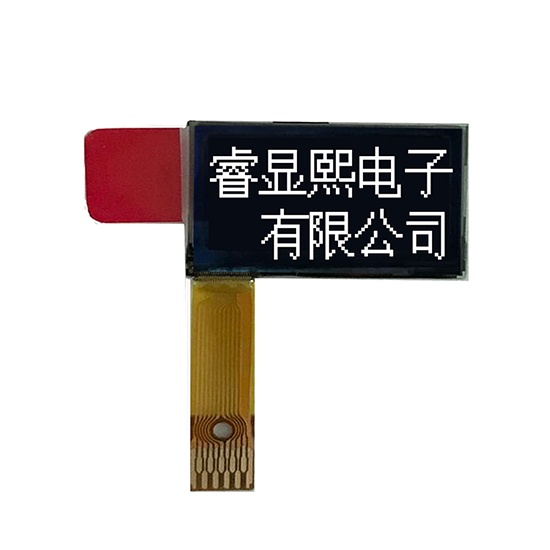

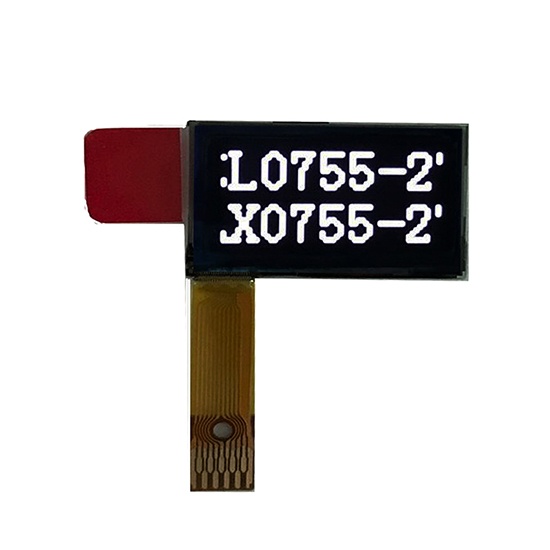

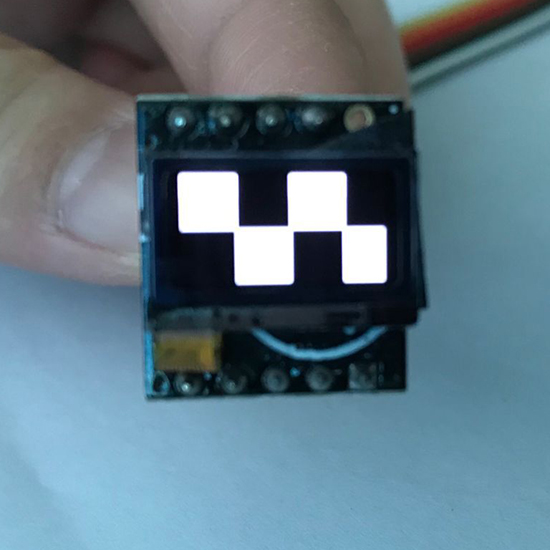

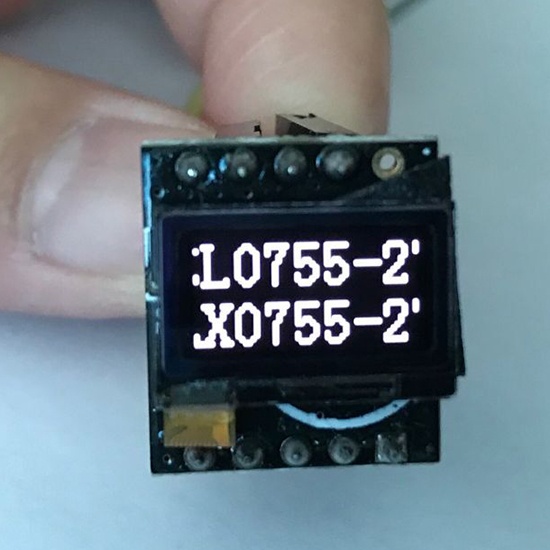

Detailed Image

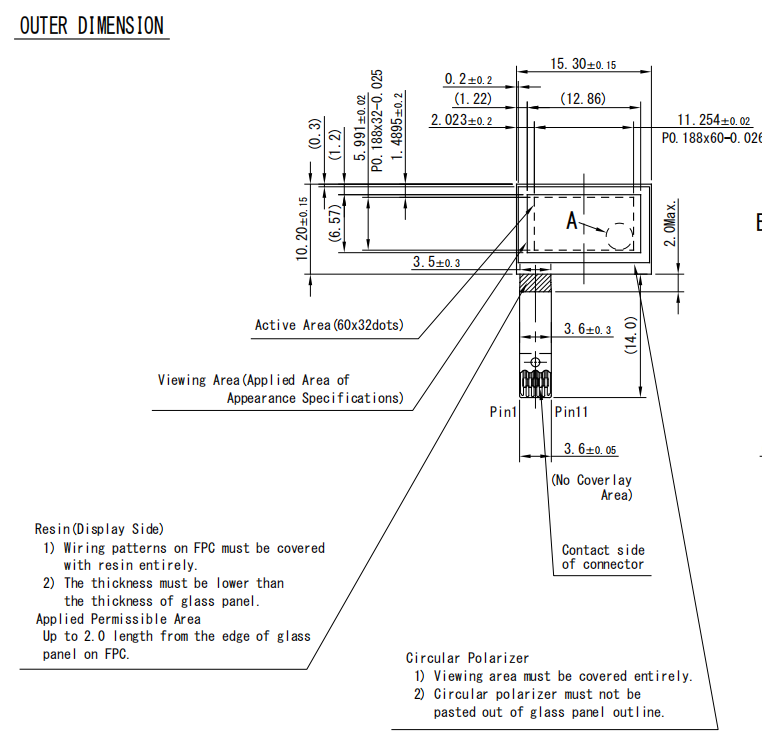

Physical Size

Key Information

0.5 inch Mini Display OLED Screen Module

Size

0.5”

Control IC

LD7032

Resolution

60x32

Viewing Area

11.25*5.99 (mm)

Physical Dimensions

15.3*10.2 (mm)

Interface

IIC, SPI

PIN Number

Refer to data sheet

Display Color

White

Drive Mode

Passive Matrix

Power Supply Voltage

13V/2.8V

Module Weight

TBD

Luminance

250 CD/M2

Test Platform

1>51

2>STM32

3>STM8

4>Arduino
