Products > Character LCD > > 8x2 Parallel Character LCD

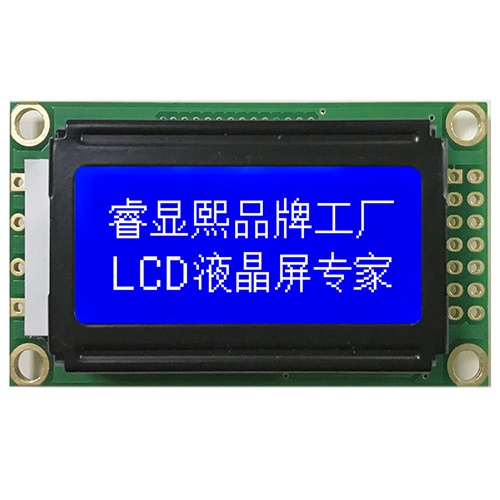

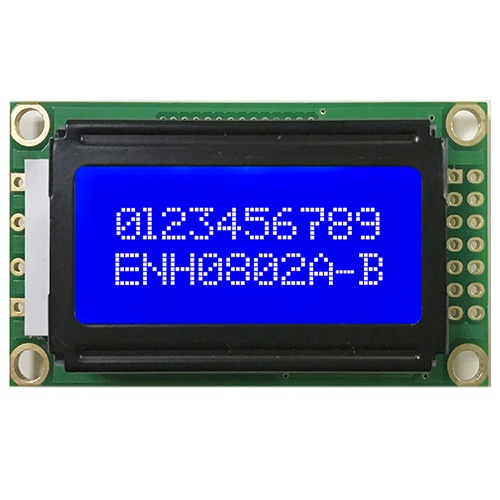

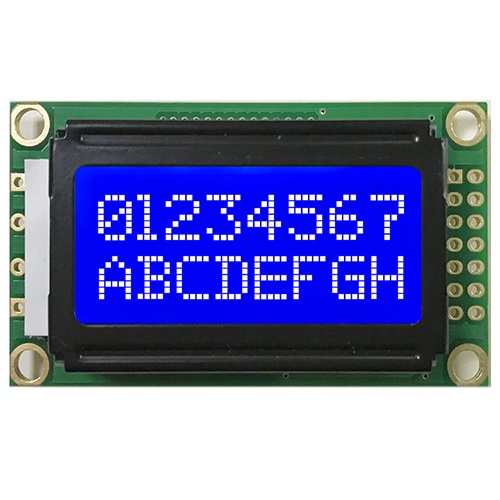

8x2 Parallel Character LCD
8x2 Parallel Character LCD 8x2 Parallel Character LCD 8x2 Parallel Character LCD 8x2 Parallel Character LCD
Product name : 8x2 Parallel Character LCD
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Parallel Character LCD 8x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive  -20°C to +70°C 6:00



Available in several variations of backlight and polarizer (minimum order may be required)

8-bit parallel interface

Industry-standard SPLC780D compatible controller



Details of LCD

Display Type: 8characters x 2 lines

LCD Type: STN, NEGATIVE (BLUE), TRANSMISSIVE

Driver Condition: LCD Module: 1/16Duty , 1/5Bias

Viewing Direction: 6 O’clock

Backlight Type: SIDE WHITE

Interface: 8-bit MPU interface

Driver IC: SPLC780D



Outline Dimension: 58(L) * 32(W) * Max 13.5(T) mm

Viewing Area: 38(L) * 16( W) mm

Dot size: 0.56(W) * 0.66(H) mm

Dot pitch: 0.6(W) * 0.7(H) mm

Character size: 2.96(W) * 5.56(H) mm

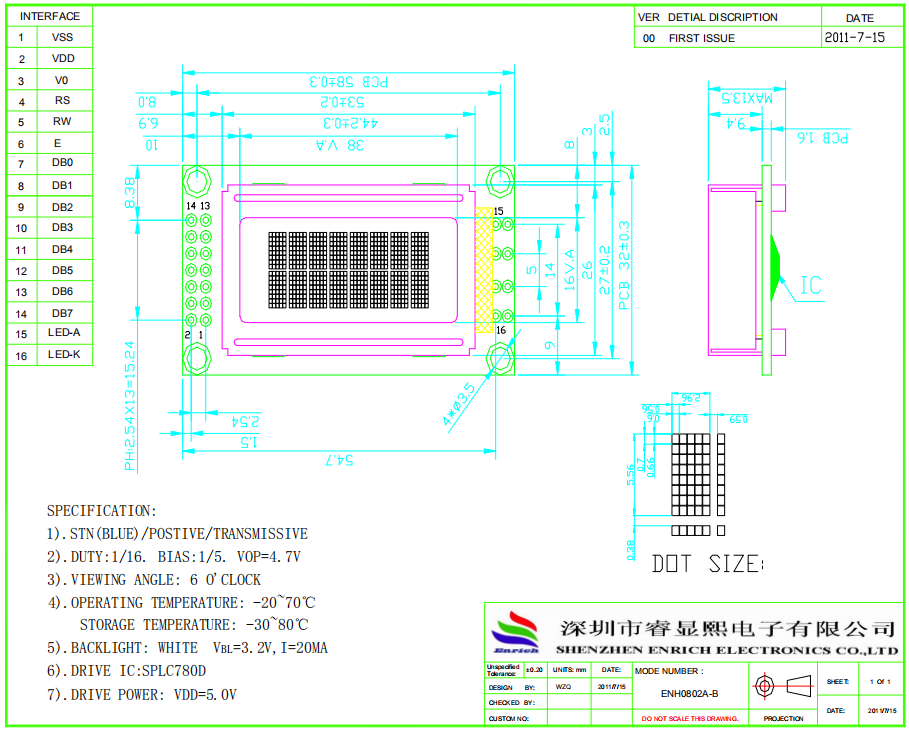

LCD Drawing

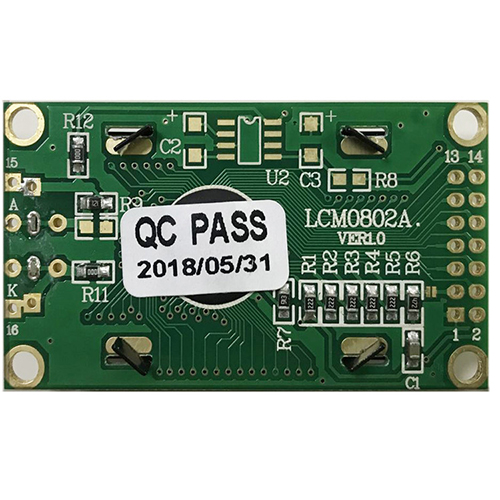

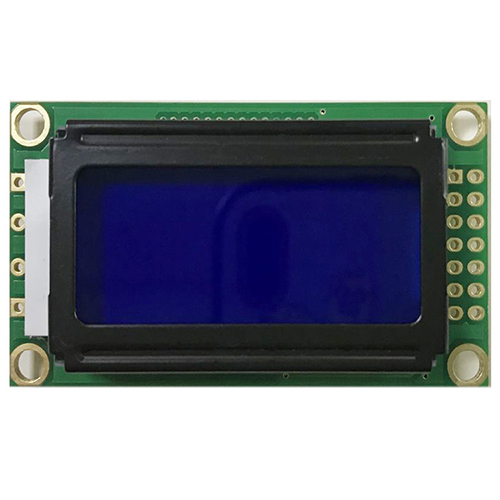

Image Details




Our Service

1. Small order would be accepted.

2. Mass production leadtime would be guaranteed.

3. Sample leadtime: 10 days;

4. Mass production leadtime: 30 days.

5. 100% product testing and inspection before shipment.

6. 100% free replacement for defective products.
