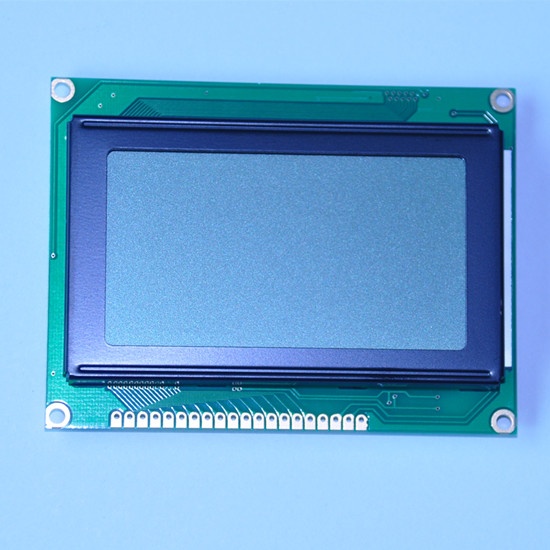

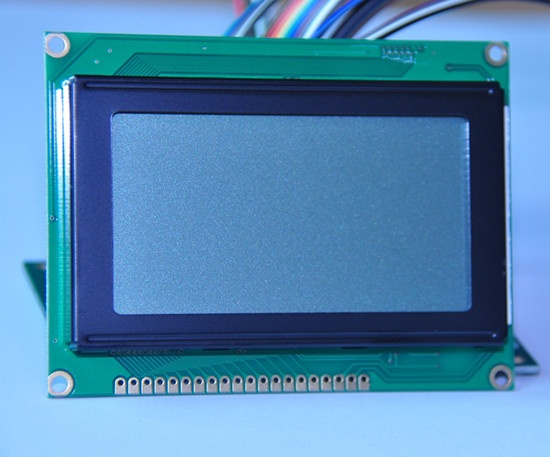

High quality standard STN type 128x64 dots graphic LCD dispaly module 5V
High quality standard STN type 128x64 dots graphic LCD dispaly module 5V High quality standard STN type 128x64 dots graphic LCD dispaly module 5V High quality standard STN type 128x64 dots graphic LCD dispaly module 5V High quality standard STN type 128x64 dots graphic LCD dispaly module 5V
Product name : High quality standard STN type 128x64 dots graphic LCD dispaly module 5V
Product No. : 2017122213549
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Dear Customers,

Welcome to Enrich Co.

If you need more other items, just leave massage or email me. I'll contact you soon. Thank you~~



Shenzhen Enrich Electronics Co., Ltd is an export-oriented high-tech enterprise, specializing in the customizing of TN, HTN, STN, FSTN and other types of LCD for COG and COB module.



We produce LCD and LCM more than 5 years,our products include Monochrome COG and COB LCD Module, TFT Module, OLED Module, etc.



Our products apply for medical electronics, instrumentation,smart wearable device, a number of areas of financial POS machine, U shield, CATV, ETC electronic tag and home appliances products,etc.



As a supplier of international renowned enterprises, most pf our products are exported to Europe, America and other countries.

Product Details



1.Display Type

128 X 64 DOTS

2.LCD Type

STN, POSITIVE(Gray), TRANSFLECTIVE

3.Driver Condition

LCD Module: 1/16Duty, 1/5Bias

4.Viewing Direction

6 O'clock

5.Backlight Type

White

6.Interface

8-bit MPU interface

7.Driver IC

0107, 0108

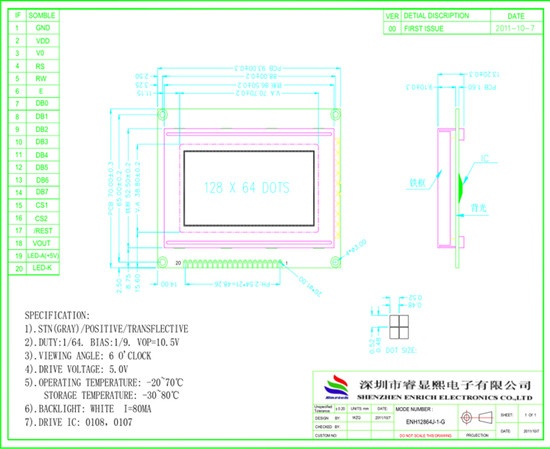

8.Outline Dimension

93(L) * 70(W) * Max 13.5(T) mm

9.Viewing Area

70.7(L) * 38.8( W) mm

10.Drive Power

VDD=5.0V

11.Operating Temp

-20~70℃

12.Storage Temp

-30~80℃

13.MOQ

1 Piece
