Products > OLED > > China Small 48x64 0.71" Graphic OLED Display
China Small 48x64 0.71
China Small 48x64 0.71 China Small 48x64 0.71 China Small 48x64 0.71

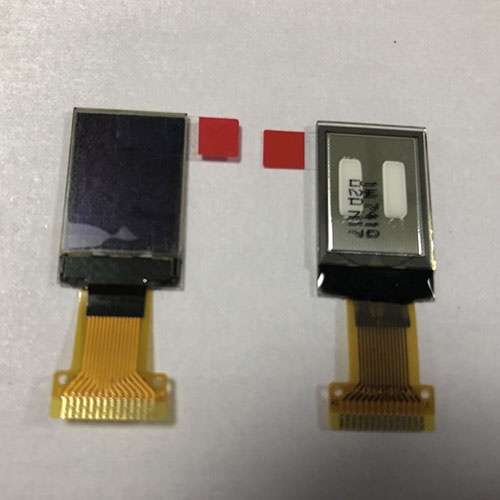

Product name : China Small 48x64 0.71" Graphic OLED Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This white-on-black OLED is perfect for display panels that have little space and need a high resolution 48x64 graphic display. With a 12.14 (W) x 16.3(H) mm viewing area, this is one of the smallest OLEDs available.



Thin form factor! 1.227mm

SSD1306 or compatible controller communicates with I2C interface.



The SSD1306 controller needs only a single 3.3v supply for power and logic levels for communication, making it a top choice in low power or battery-powered applications.

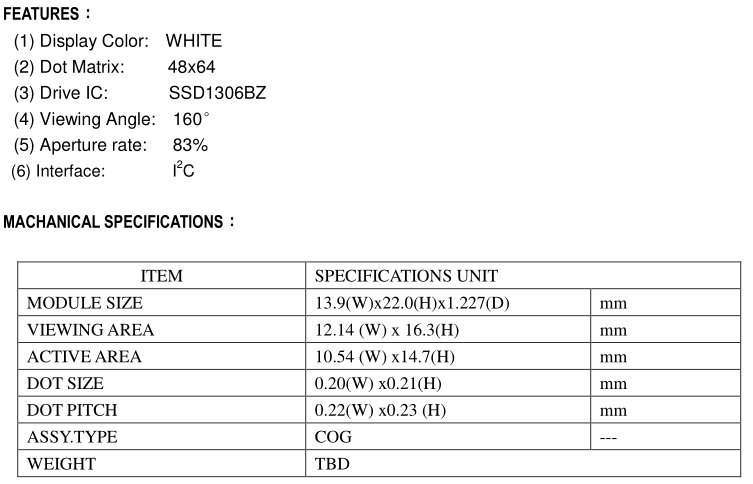

OLED Details

China Small 48x64 0.71" Graphic OLED Display

Size

0.71

SSD1331

SSD1306BZ

Resolution

48×64

Module Size

13.9(W)x22.0(H)x1.227(D) mm

View Area

12.14 (W) x 16.3(H) mm

Active Area

10.54 (W) x14.7(H) mm

Interface

I2C

PIN Number

14 PIN

Display Color

White

Viewing Angle

160°

Aperture rate

83%

Module Weight

1.8g

MOQ

1 Piece

Test Platform

1>51

2>STM32

3>STM8

4>Arduino

Please contact us for questions regarding this product.

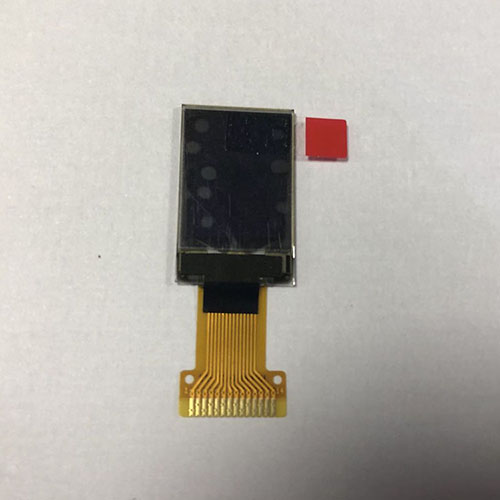

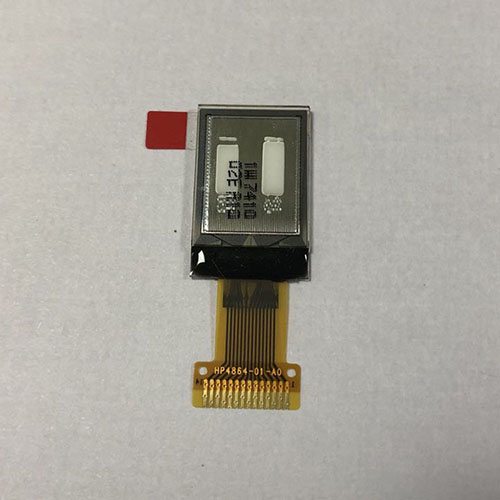

Image Details

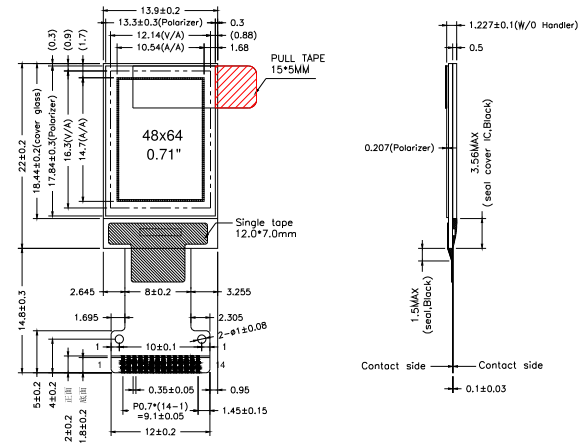

Physical Size

OLED Applications

-Meter

-Ammeter

-Instrument tuner

-External hard disk

- Printers

-Wearable devices

-Medical & health equipment

-3D & Shutter



As a supplier of international renowned enterprises, most of our products are exported to Europe, America and other countries.



FAQ

+How to place an order ?

Please send us your purchase order by Email or through Whats APP directly, or ask us to send you one invoice.



+How can I get the data sheet ?

If you need the standard OLED, the datasheet will be sent to request after getting your inquiry.



+How long can I get the sample?

Samples will be ready for deliver in 5-7 days.



+Are you manufacture or trade company?

We are the manufacture specialized in TN, STN, FSTN, HTN, TFT products over 6 years.
